Description

ACT Heavy Duty Performance Street Sprung Clutch Kit

The ACT SB7-HDSS Heavy Duty Performance Street Sprung Clutch Kit combines a beefy diaphragm pressure plate, premium sprung street disc, and a lightweight Streetlite flywheel to deliver a firmer pedal, smooth engagement, and extended friction life for FT-86 platform vehicles.

• Heavy Duty diaphragm pressure plate with four-stage heat-treated springs for maximum clamp load and durability
• Performance Street sprung disc with high-copper organic friction and steel-backed lining for superior heat transfer and burst strength
• Reduced marcel design for quicker shifts and controlled OE-style rattle
• Dynamically computer-balanced assembly for smooth high-RPM reliability

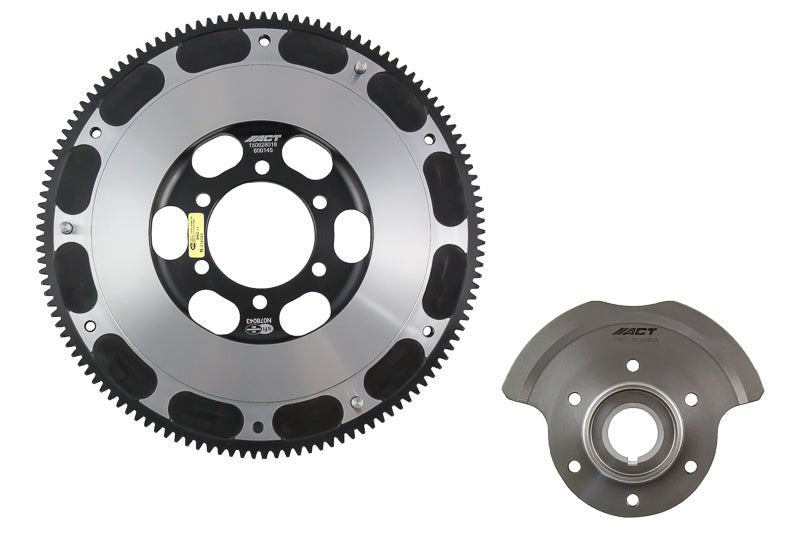

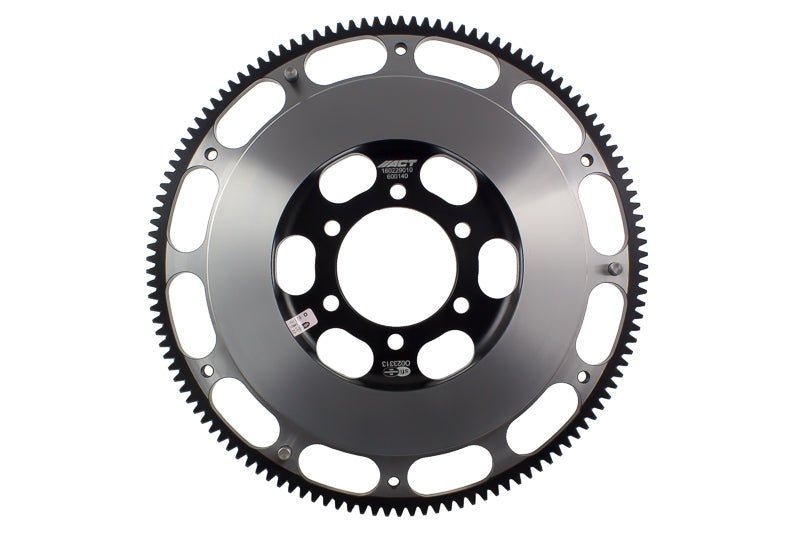

• Includes XACT Streetlite flywheel for reduced rotational mass and quicker throttle response

Item Specs:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: Yes
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.8 IN (224 mm)
• Disc Material: Organic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1 IN
• Alignment Tool Included: Yes
• Disc Type: Sprung
• Pressure Plate Bolts Included: Yes
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: Yes (M10-1.0 x 25mm)
• Flywheel Type: Streetlite
• Product Weight: 26.2 lbs.
• Estimated Ship Date: 10/31/24
• Torque Capacity Over OE: 273 ft/lbs

Compatibility List:

• 2013–2016 Scion FR-S Base 2.0 L H4 (1998 cc)
• 2013–2020 Subaru BRZ Limited 2.0 L H4 (1998 cc)
• 2013–2019 Subaru BRZ Premium 2.0 L H4 (1998 cc)
• 2015 Subaru BRZ Series Blue 2.0 L H4 (1998 cc)
• 2019 Subaru BRZ Series Gray 2.0 L H4 (1998 cc)
• 2016 Subaru BRZ Series HyperBlue 2.0 L H4 (1998 cc)
• 2018 Subaru BRZ TS 2.0 L H4 (1998 cc)
• 2020 Subaru BRZ TS 2.0 L H4 (1998 cc)
• 2017–2020 Toyota 86 Base 2.0 L H4 (1998 cc)
• 2018–2020 Toyota 86 GT 2.0 L H4 (1998 cc)
• 2017 Toyota 86 Special Edition 2.0 L H4 (1998 cc)
• 2019 Toyota 86 TRD Special Edition 2.0 L H4 (1998 cc)
• 2020 Toyota 86 Hakone Edition 2.0 L H4 (1998 cc)
